Cleaning Machine・Inspection Machine

Ultrasonic Cleaning Machine

Kasen has a cleaning devices such as a Ultra sonic cleaner and Electric furnace for maintenance of spinneret. long length spinneret for Nonwoven can be available in suitable condition. it also can be used for pre-heating before operation.

Ultrasonic Cleaner

Model KNUL-1000 KNUL-3000 KNUL-5000
Tank capacity 78L 210L 355L
Inside dimensions(mm) 1500×350×150 3500×400×150 5500×430×150
Outside dimensions(mm) 2206×1091×1708 4206×1150×1708 6206×1171×1708
Weight 800kg about 1100kg about 1700kg
Heater capacity 6.5kW 17.5kW 30kW
Power source AC200V Three phase
Transducer speed 0.72～7.2[m/min]
Drain Drain valve manually
Preset temperature Room temperature up to 60℃
Timer Up to 6 hours
Material Cleaning bath：SUS304 / Body：SUS304 / Piping：SUS304

Electric Furnace

Kasen makes electric furnace corresponding to long scale nozzle. It can also be used for preheating.

Electric Furnace

Model KNEF-1000 KNEF-3000 KNEF-5000
Inside furnace(mm) 300×300×1000 300×300×3000 300×300×5000
Outside dimensions(mm) 1800×2095×2649 3800×2095×2649 5800×2095×2649
Control P.I.D control
Heater capacity 30kW 60kW 96kW
Temperature MAX500℃
Power source Three phase 380V
Others Furnace fan / Exhaust fan / Polymer trap / Cart

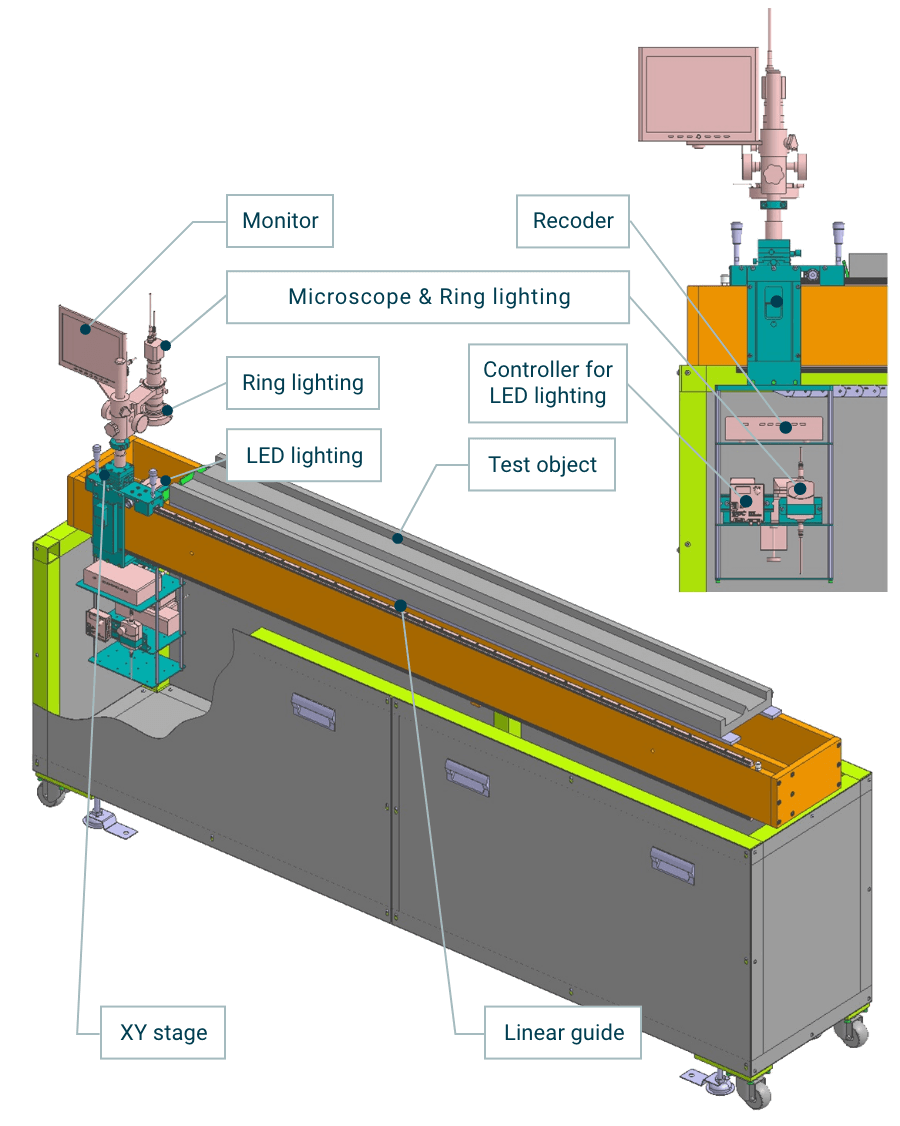

Inspection Machine for Meltblown Spinneret

Remaining polymers and contamination inside the capillary can be observed with a microscope.

電気焼却炉

Model KNIDS-1900
Test object 1600ｍｍM/B
Outside dimensions(mm) 2511W×517D×1427H
Weight 210kg
Power source 100V

Specification

■A.Video microscope with monitor

Manufacturer SHODENSHA
Product Video microscope with monitor
Model TG70TV-M
Magnification ✖25-✖150
Size of monitor 8inch

■B.Video recoder

Manufacturer SHODENSHA
Product 2 screens video recorder display (USB support)
Model GRAV-1
format JPEG BMP H.264
Data storage USB (accessory)
Operation Mouse(accessory)
